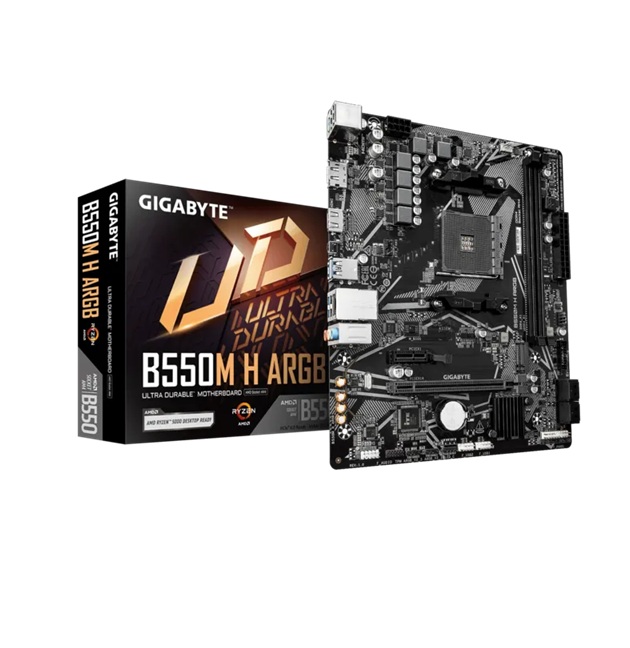

Gigabyte B550M H ARGB Micro-ATX AMD B550 motherboard

AM4 support, PCIe 4.0, DDR4 up to 5100MHz OC, HDMI 2.1, DP 1.4, M.2, and Gigabit LAN

DESCRIPTION

Gigabyte B550M H ARGB Micro-ATX AMD B550 motherboard with AM4 support, PCIe 4.0, DDR4 up to 5100MHz OC, HDMI 2.1, DP 1.4, M.2, and Gigabit LAN

Micro-ATX Motherboard Specifications (AMD B550)

• Socket / CPU: AM4
•Ryzen 3000 / 4000G / 5000 / 5000G
• Chipset: AMD B550

•Memory:
• 2× DDR4, up to 64 GB (Dual-Channel)
• 2133–5100 MHz (OC)
•XMP support, ECC (non-ECC mode) / Non-ECC

• Integrated Graphics:
•DisplayPort 1.4 – up to 5K@60Hz
•HDMI 2.1 – up to 4K@60Hz
• Max shared memory: 16 GB

• Expansion Slots:
• 1× PCIe x16 (Gen 4.0 / 3.0)
•1× PCIe 3.0 x1

•Storage:
• 1× M.2 (PCIe 4.0 / 3.0)
•4× SATA 6Gb/s
•RAID 0 / 1 / 10

• Networking:
• Realtek Gigabit LAN

•Audio:
• Realtek HD Audio, up to 7.1-channel

•USB:
•4× USB 3.2 Gen 1 (rear)
•USB 3.2 Gen 1 & USB 2.0 headers

•Internal Headers:
•24-pin ATX, 8-pin CPU power
•CPU fan + 2× system fan
•RGB Gen2 & RGB headers
•TPM, Clear CMOS

•Back Panel I/O:
•DisplayPort, HDMI
•USB 3.2 Gen 1, USB 2.0
• Q-Flash Plus button
•RJ-45 LAN, Audio jacks

•BIOS:
•AMI UEFI, 128 Mbit
• Q-Flash & Q-Flash Plus

•OS Support: Windows 10 / 11 (64-bit)
• Form Factor: Micro-ATX (23.3 × 19.8 cm)
