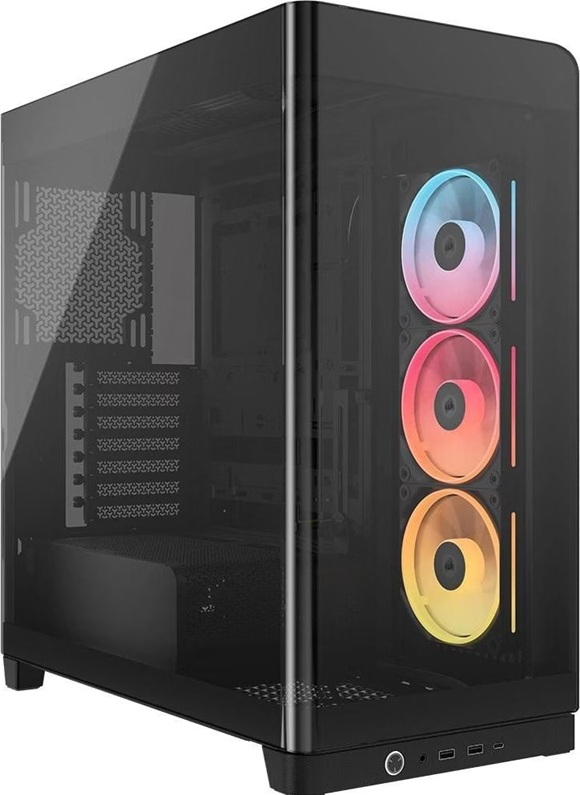

Corsair FRAME 4500X LX-R RGB LINK Panoramic Glass Mid-Tower PC Case

Corsair FRAME 4500X LX-R RGB LINK Panoramic Glass Mid-Tower PC Case

up to 460mm GPU, 360mm radiators, rich I/O, and versatile fan/rad mounts

$385.00

DESCRIPTION

iCue Link

FRAME 4500X LX-R RGB iCUE LINK

PANORAMIC GLASS MID-TOWER PC CASE
Watch Video
CURVES AHEAD

PANORAMIC GLASS SIDE PANEL

A single-piece of curved tempered glass lets you show off your build uninhibited, without any seams or sharp angles blocking the view. The curved glass wraps around the front and side, providing an unobstructed view of your high-powered hardware.

The tempered glass side panel is laminated with a practically invisible film coating for safety and noise reduction.

GO BIG, OR GO BIGGER

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM

This steel multi-point fan mounting system provides unmatched flexibility for the roof fan configuration. Easily slide the rail to mount either 120mm or 140mm fans exactly where you need it, ensuring targeted airflow without the limitation of fixed mounting points.

Link

iCUE LINK READY

LX-R REVERSE-ROTOR INTAKE FANS INCLUDED

Reverse-rotor iCUE LINK LX-R RGB intake fans offer easy one-cable connectivity, unobstructed RGB lighting, and low-noise cooling. Fresh air is pulled through the ventilated side and into the spacious mid-tower chassis for effective cooling and plenty of airflow to ensure maximum performance.

A colour-matched iCUE LINK System Hub is included so it’s easy to add more LINK fans to your system, with support for up to 24 devices on just one hub.

CASCADING COOL

VENTILATED SIDE AND TOP PANELS

Airflow optimised panels adorn the top and side of the FRAME 4500X to provide maximum breathability for fans mounted in both locations.

The side-mounted reverse-rotor intake fans pull cool air in from outside the chassis, while top-mounted fans (sold separately) exhaust hot air out of the case to keep the interior frosty.

HIDDEN FROM VIEW

LOOK, NO CABLES

Fully compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth, this design features ample connector and cable cutouts, along with tie-downs to keep your build neat and organised, even where you can’t see them.

EASY TO LIVE WITH

DIY DONE RIGHT

The FRAME 4500X incorporates useful features to make building a PC easier.

VERTICAL GPU READY

VERTICAL GPU READY

Put your GPU front and center in your new build with easy vertical mounting, no tools or bracket required (Riser Cable sold separately).

Graphics Cards

SAG-FREE GRAPHICS CARDS

A GPU Anti-sag Stabilisation Arm keeps your GPU steady, so you never have to worry about damaging your PCIe slot.

REUSABLE SCREW BOX

REUSABLE SCREW BOX

Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 2x 360mm radiators at the same time.

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

The FRAME 4500X has more than enough space to accommodate and cool your most ambitious build.

Dimensions

Front Panel I/O

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

1
Power Button
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-A Ports
4
USB 3.2 Gen 2 Type-C Port
Scenario

*Configuration shown for illustrative purposes only and functionality may not be representative of real-world use capabilities.

Warranty

TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR’s award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Dimensions (mm)

499 x 246 x 478 mm

Material

Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Motherboard Support

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Colour

Black

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5″ Drive Bays

1

Internal 2.5″ Drive Bays

2

Maximum CPU Cooler Height

185mm

Maximum PSU Length

250mm

Case Front IO

(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

460mm

Weight

11.68kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support – Top

360mm, 280mm, 240mm

Radiator Support – Front

None

Radiator Support – Bottom

None

Radiator Support – Side

360mm, 280mm, 240mm

Radiator Support – Rear

140mm, 120mm

Fan Support – Top

3x 120mm, 2x 140mm

Fan Support – Front

None

Fan Support – Bottom

3x 120mm, 1x 140mm

Fan Support – Side

3x 120mm, 2x 140mm

Fan Support – Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support

Yes

Included Fans

iCUE LINK LX Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

• FRAME 4500X Case
• 3x LX120R RGB LINK Fans
• Case Accessory Box
